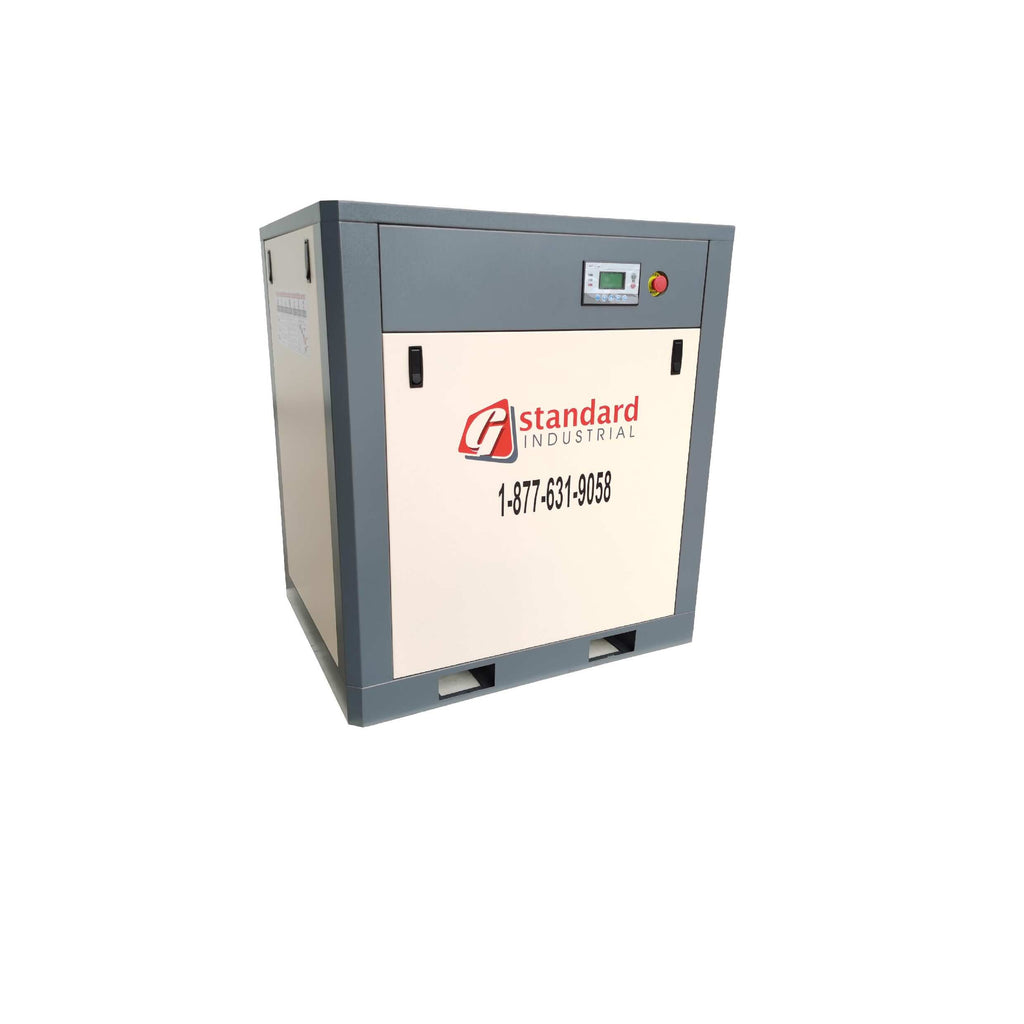

GS Series 50 HP Air Compressor

The GS Series 50 HP is a high-capacity single-stage, oil-injected, air-cooled rotary screw compressor engineered for continuous-duty performance in the most demanding industrial environments. With an optional Variable Speed Drive (VSD), this system optimizes energy usage by adjusting to demand—reducing energy costs and full-load amps. Available in 230V or 460V 3-phase configurations.

Key Features

• Powerful 50 HP Performance
  Ideal for heavy-duty, high-volume compressed air applications.
• Energy-Efficient VSD Option
  Variable Speed Drive reduces energy waste by matching output to system demand.
• Fully Integrated Compressor System
  Includes the rotary screw unit, motor, air/oil system, filtration, cooling fan, and electronic controls—factory assembled for plug-and-play installation.
• Compact & Low Noise
  All components are housed in a fully enclosed, sound-insulated steel cabinet for quiet, space-saving operation.

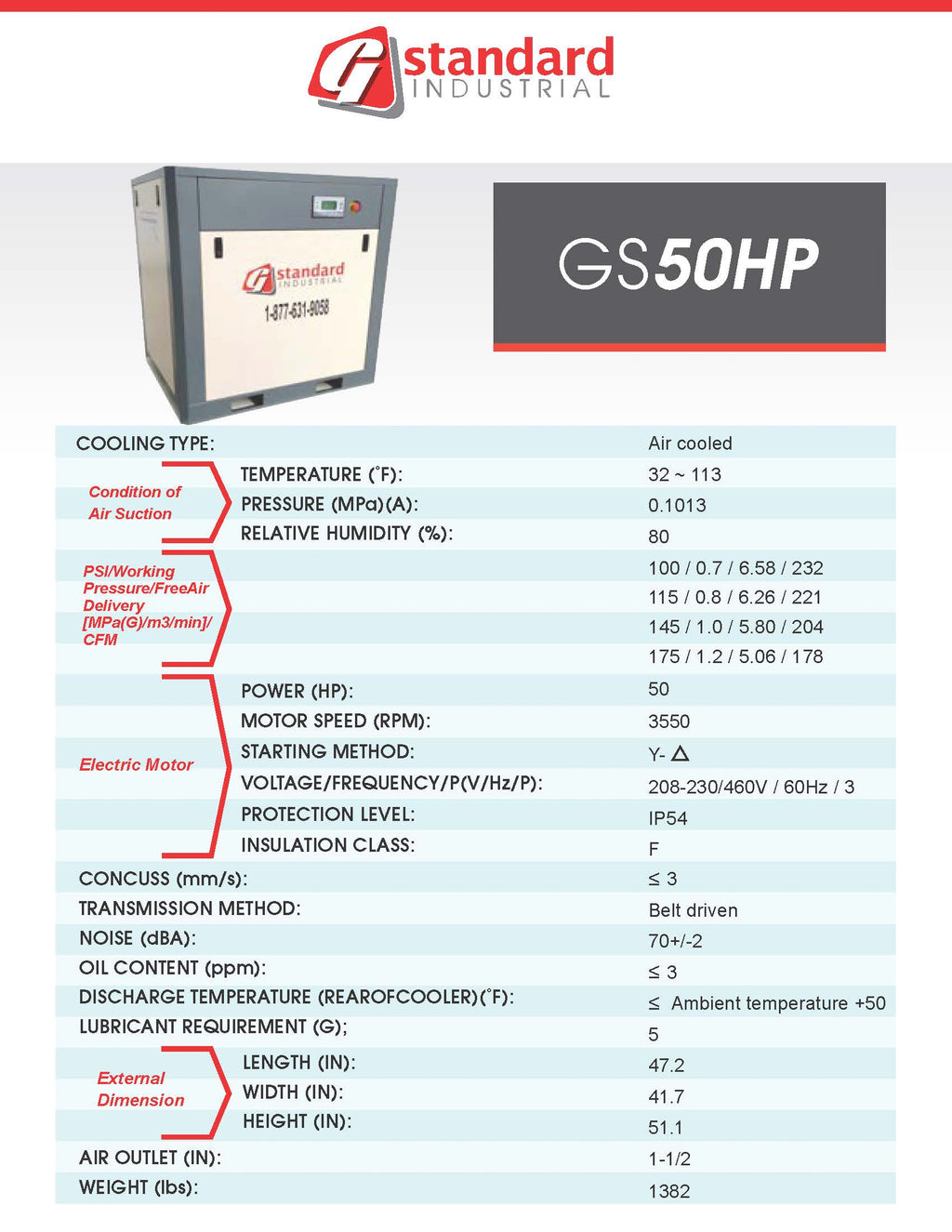

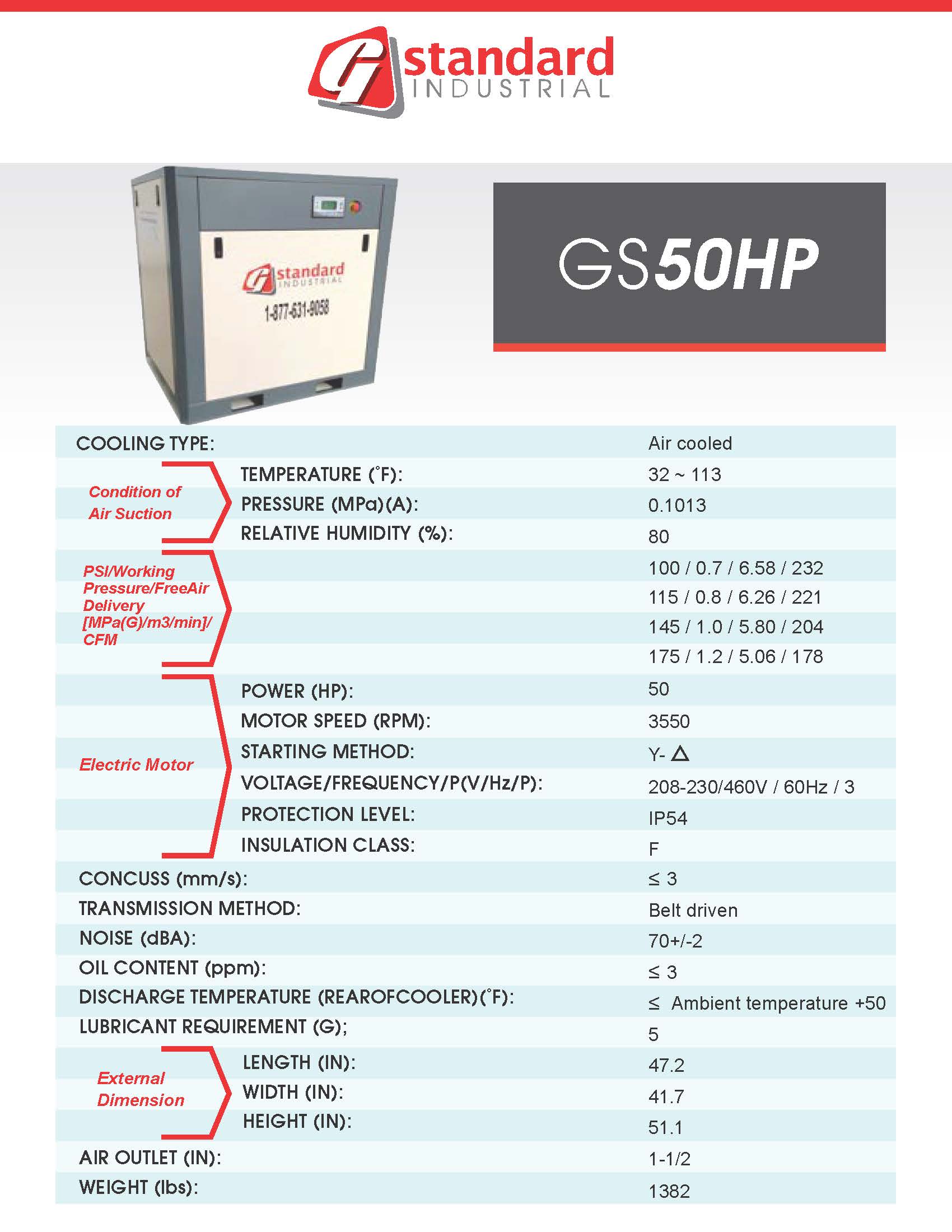

Technical Specifications

• Power: 50 HP
• Voltage: 230V or 460V, 3-phase (all voltages supported)
• Cooling System: Plate-fin aluminum air-cooled oil cooler with dedicated fan
• Piping: Durable copper and stainless steel braided air/oil lines
• Filtration: High-performance air inlet and particle filters
• Enclosure: Cold-rolled steel with 250° varnish for rust and corrosion resistance
• Noise Dampening: Eco-friendly, high-density insulation for reduced sound output
• Safety: ASME and CRN certified safety valve

Key Components

• AirEnd
  German-engineered high-efficiency rotors
  Oil-injected for lubrication and air sealing
  Temperature sensor at the discharge ensures optimal performance
• Oil Separation System
  Multi-stage air/oil separator with <3 ppm carryover
  Reservoir tank with oil level sight glass and easy-access drain
• Electric Motor
  NEMA-compliant, TEFC motor for maximum protection
  Foot/flange mounted, IP54 insulated, with specialized winding coating for extended motor life
• Drive System
  Integrated V-belt with easy tensioning system
  International standard pulleys for easy maintenance and longevity
• Intake Valve
  Automatic dual control intelligently manages air output based on demand

Advanced Controls

• PLC Electronic Control Panel
  Displays real-time system status and fault codes for simplified diagnostics
  Minimal downtime thanks to intuitive design and easy service access
• CE-Certified Electrical System
  Ensures compliance with global electrical safety and performance standards

The GS 50 HP Rotary Screw Air Compressor offers a powerful, efficient, and reliable solution for operations that demand high air volume with minimal energy waste and maintenance—backed by intelligent control and robust construction.
