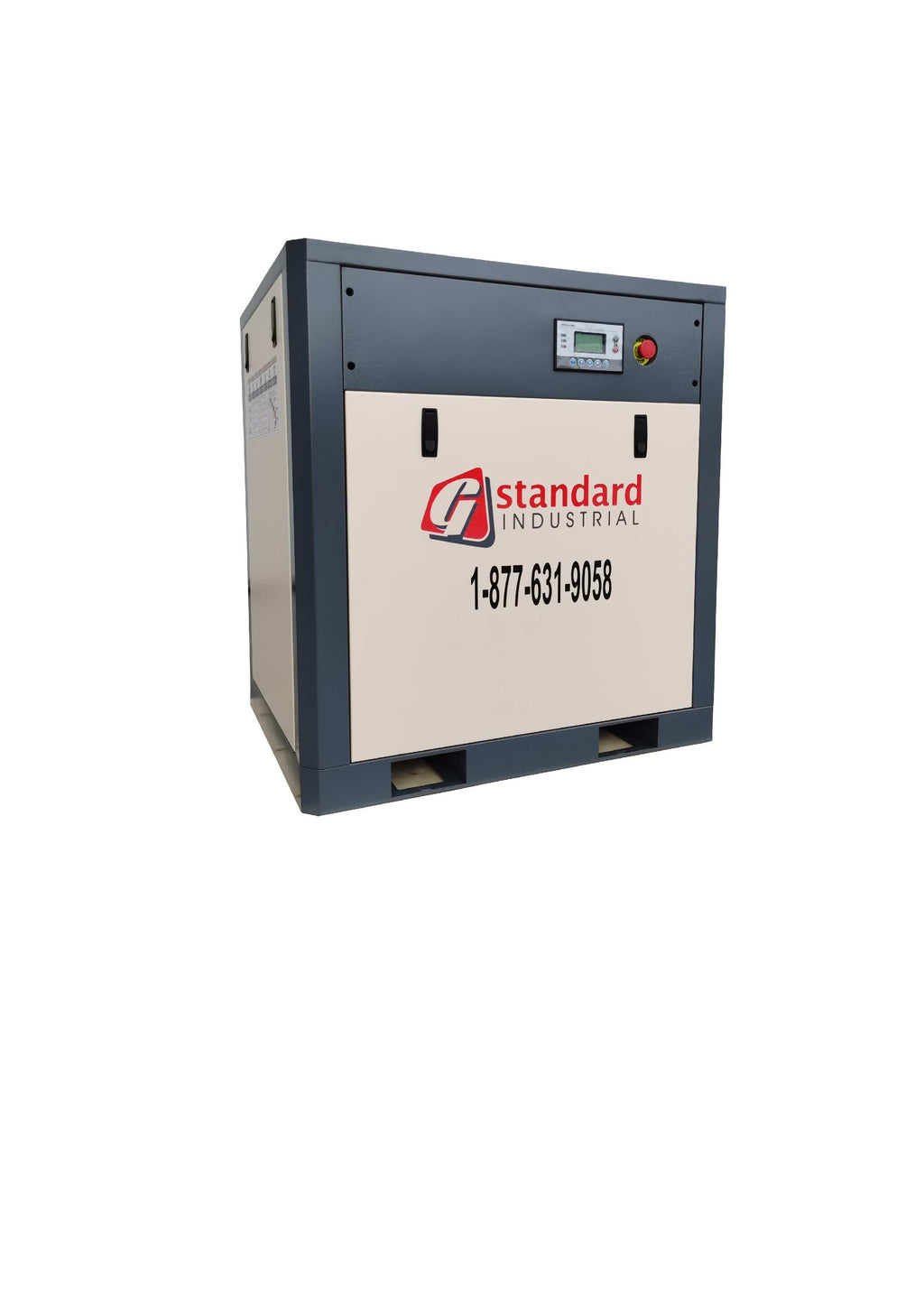

GS Series 15 HP Rotary Screw Air Compressor

The GS Series 15 HP rotary screw air compressor is a single-stage, oil-injected, air-cooled system designed for continuous-duty performance in demanding industrial environments. Featuring an optional Variable Speed Drive (VSD), it intelligently adjusts output based on demand—reducing energy consumption, lowering full-load amps, and cutting utility costs.

Key Benefits

• Energy Efficiency with VSD Option
  Variable Speed Drive ramps up only when needed, reducing power use and operational costs.
• Complete, Ready-to-Use Package
  Includes rotary screw compressor, motor, air/oil system, filters, cooler, fan, and control panel—all fully integrated.
• Quiet & Compact
  Enclosed in a noise-reducing cabinet with a small footprint for flexible placement in any facility.

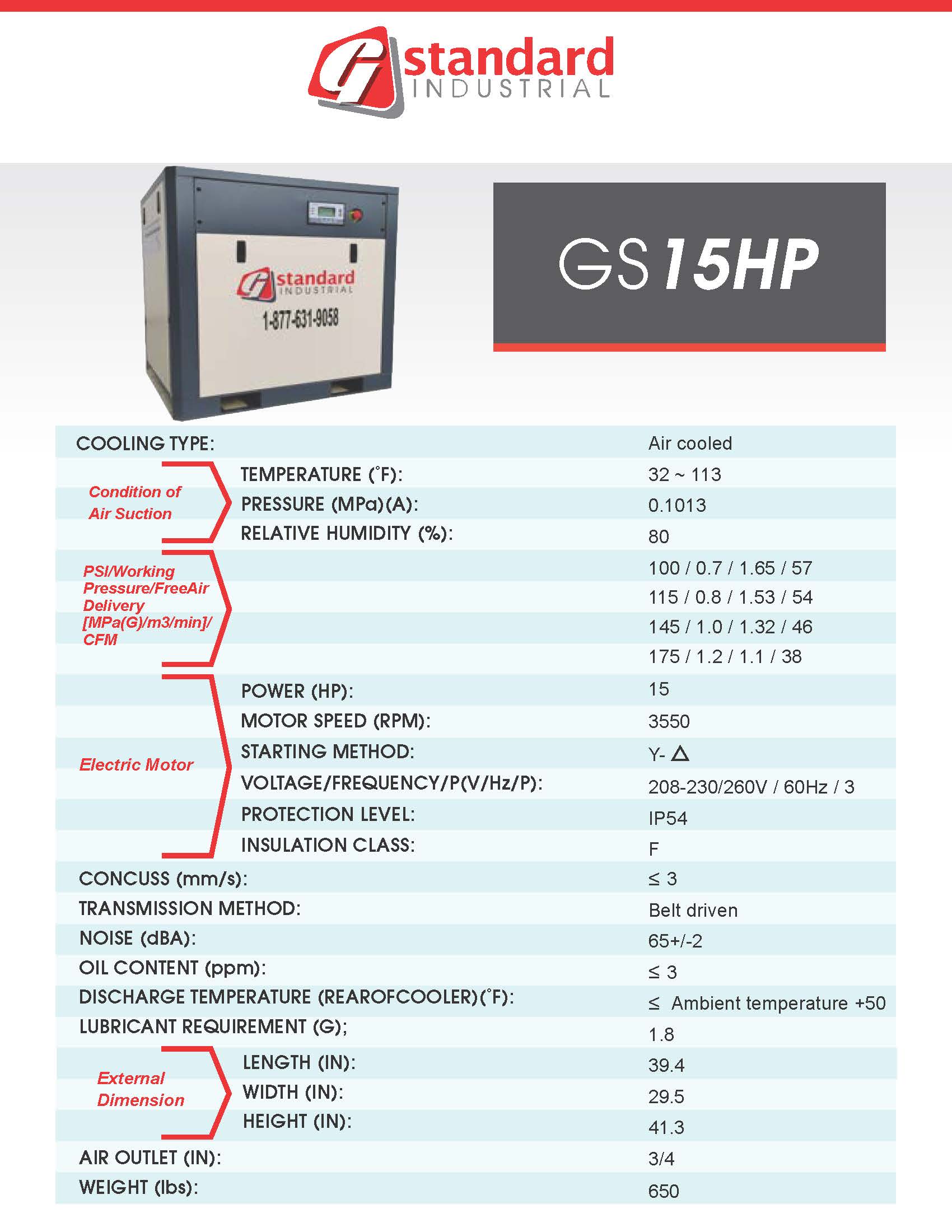

Technical Specifications

• Power: 15 HP
• Voltage: 230V or 460V, 3-phase
• Cooling: Integrated plate-fin aluminum oil cooler with dedicated fan
• Filtration: Standard air inlet and particle filters
• Piping: Durable copper and stainless steel braided lines
• Noise Reduction: Eco-friendly high-density insulation inside steel-plated cabinet
• Safety: ASME & CRN-certified safety valve

Advanced System Components

• AirEnd
  German-engineered high-efficiency rotors
  Oil-injected for superior sealing and lubrication
  Discharge temperature sensor for optimized operation
• Separation System
  Multi-stage air/oil separation with easy-access drain
  Delivers <3 ppm oil carryover for cleaner air
• Electric Motor
  High-efficiency TEFC motor with NEMA compliance
  IP54 insulated, foot/flange mounted, special winding coating for extended life
• Drive System
  Integrated V-belt system with auto-tensioning
  International standard pulleys for ease of maintenance
• Intake Valve
  Dual control automatically adjusts to meet air demand

Controls & Monitoring

• PLC Electronic Controller
  Displays fault codes with descriptions for fast troubleshooting
  Simplified design allows for quick servicing and minimal downtime
• CE-Certified Electrical Components
  Global safety and compliance built-in

Durability & Build Quality

• Enclosure
  Cold-rolled steel with 250° varnish for corrosion resistance
  High-density, environmentally friendly noise-dampening materials
