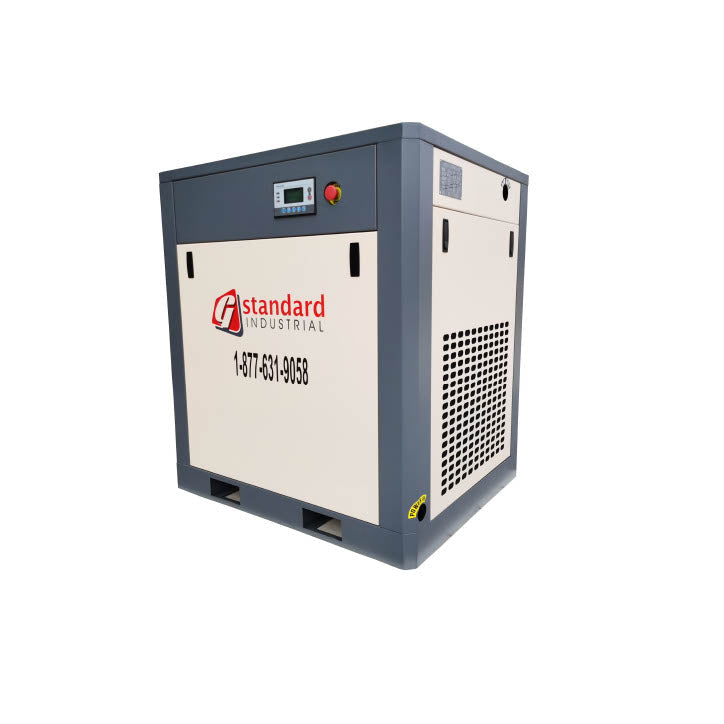

GS Series 25 HP Air Compressor

GS Series 25 HP Rotary Screw Air Compressor

The GS Series VSD is a single-stage, oil-injected, air-cooled rotary screw compressor built for continuous-duty industrial applications. With an optional Variable Speed Drive (VSD), this model maximizes energy efficiency by adjusting output based on demand—reducing full-load amps and significantly lowering your energy costs. Available in 230V or 460V 3-phase configurations.

Key Features

• Energy-Efficient VSD Option
  Ramps up on demand, reducing power consumption and operating costs.
• All-in-One Package
  Includes compressor, motor, cooling system, filters, oil/air separation system, fan, and controls.
• Quiet & Compact Design
  Fully enclosed cabinet with noise-dampening insulation for minimal noise and space-saving installation.

Technical Highlights

• Voltage Options: 230V or 460V, 3-phase (all voltages supported)
• Cooling: Integrated aluminum plate-fin oil cooler with dedicated fan
• Filtration: High-efficiency particle and air inlet filters
• Piping: Durable copper and stainless steel braided air/oil lines
• Safety: ASME and CRN certified safety valves

Core Components

• Separation System
  Multi-stage air/oil separation with sight glass
  Delivers less than 3 ppm carryover for clean air
  Easy-access oil drain for fast servicing
• AirEnd
  Precision-engineered German rotors with oil injection for lubrication and sealing
  Advanced discharge temperature sensors for real-time monitoring
• Drive System
  V-Belt with automatic tension system
  International standard pulleys for easy maintenance and long service life
• Electric Motor
  High-efficiency, TEFC (Totally Enclosed Fan Cooled) motor
  NEMA compliant, IP54 insulation, special coating for longevity

Automation & Control

• PLC Electronic Controller
  Displays fault codes and descriptions for fast troubleshooting and reduced downtime
• Dual Control Intake Valve
  Automatically adjusts based on air demand for optimal performance
• Certified Electrical Components
  CE-listed for global safety and quality standards

Durability & Build

• Enclosure
  Cold-rolled steel panels with 250° varnish coating for corrosion resistance
  Eco-friendly noise-dampening materials reduce operational sound
